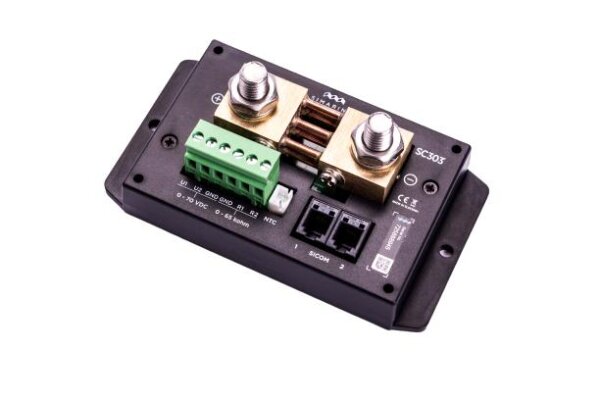

Simarine SC303 Shunt 300A for PICO Battery Monitor NEW Version

Simarine |SC303
GTIN: 4050269079497

JTL\Catalog\Product\Artikel Object ( [kArtikel] => 742 [kHersteller] => 23 [kLieferstatus] => 1 [kSteuerklasse] => 1 [kEinheit] => 0 [kVersandklasse] => 1 [kStueckliste] => 0 [kMassEinheit] => 0 [kGrundpreisEinheit] => 0 [kWarengruppe] => 0 [nLiefertageWennAusverkauft] => 3 [nAutomatischeLiefertageberechnung] => 1 [nBearbeitungszeit] => 0 [fLagerbestand] => 11 [nNichtLieferbar] => 0 [fMindestbestellmenge] => 0 [fPackeinheit] => 1 [fAbnahmeintervall] => 0 [fGewicht] => 0.5 [fUVP] => 109 [fUVPBrutto] => 109 [fVPEWert] => 0 [fZulauf] => 0 [fMassMenge] => 0 [fGrundpreisMenge] => 0 [fBreite] => 0 [fHoehe] => 0 [fLaenge] => 0 [cName] => Simarine SC303 Shunt 300A for PICO Battery Monitor NEW Version [cSeo] => Simarine-SC303-Shunt-300A-for-PICO-Battery-Monitor-NEW-Version [cBeschreibung] =>

Innovative combination of side resistance and tank filling module.

SC303 is an active combination-by-fabric resistance for the battery tenants Pico and Pico One with 2 voltage sensors, 2 tank filling stand or temperature sensors, 1x Socet for temperature sensor with JSt connector and 1 current sensor for up to 300 A for systems with up to 75 V.

It can be used to monitor the power consumption of large consumers (inverter, bow and rear beam rudder, anchor winches) and electricity generators (country power charging devices and solar modules). In addition, it enables the monitoring of tanks for fuel, fresh water and gray water.

Operating
Power Source Voltage Range	6 - 35 V
TemPartature range	-20 -+70 ° C
Power Consumption AT 12 V
Operating	0.8 MA
Current Measuring Range
Channel	0.1 - 320 a
Accuracy	± 0,6 %
resolution	0.01 a
Sampling rate	100 ms
Maximum current
Continuous	300 a
Peak Current (<1 min)	400 a
Peak Current (<5 min)	700 a
Voltage Drop AT 300 A	50 mv
Maximum voltage on Connections	35 V

Voltage inputs
Range	0 - 75 V
resolution	1 mv
Accuracy	± 0,2 %
Sampling rate	100 ms
Resistance inputs
Range	0 Ohm - 65 Kohm
Accuracy	± 3,0%
TemPartature sensor - NTC 10K
Range	-15 -+80 ° C
Accuracy (-10-60 ° C, 14-140 ° F)	± 3,0%
Connectivity	Up to
Batteries	1
TemPartature sensors	3
Voltage sensors	2
Sicom RJ9 Sockets	2
Installation and dimension
Dimensions (Langth X Width X Depth)	120 x 120 x 60 mm
Battery Connection	M 10 Bolts

[cAnmerkung] => [cArtNr] => SC303 [cURL] => Simarine-SC303-Shunt-300A-for-PICO-Battery-Monitor-NEW-Version [cURLFull] => https://frenchman-marine.eu/Simarine-SC303-Shunt-300A-for-PICO-Battery-Monitor-NEW-Version [cVPE] => N [cVPEEinheit] => [cSuchbegriffe] => [cTeilbar] => N [cBarcode] => 4050269079497 [cLagerBeachten] => Y [cLagerKleinerNull] => N [cLagerVariation] => N [cKurzBeschreibung] =>

SC303 is an active combo shunt for the PICO and PICO one battery monitors with 2 voltage sensors, 2 tank level or temperature sensors, 1x socket for temperature sensor with JST connector, and 1 current sensor for up to 300 A for systems up to 75 V.

83,19 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

(Save 23.68%, i.e. 25,81 €)

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Shipping in 1-3 business days (DE - int. shipments may differ)

Due to exceptionally high demand, we are currently experiencing shipping delays. We apologize for any inconvenience.

Ordered in Germany. Delivered to Switzerland.

Order from any online shop in Germany and receive your goods at your doorstep in Switzerland in just 2–3 days.

Description

Innovative combination of side resistance and tank filling module.

Operating
Power Source Voltage Range	6 - 35 V
TemPartature range	-20 -+70 ° C
Power Consumption AT 12 V
Operating	0.8 MA
Current Measuring Range
Channel	0.1 - 320 a
Accuracy	± 0,6 %
resolution	0.01 a
Sampling rate	100 ms
Maximum current
Continuous	300 a
Peak Current (<1 min)	400 a
Peak Current (<5 min)	700 a
Voltage Drop AT 300 A	50 mv
Maximum voltage on Connections	35 V

Voltage inputs
Range	0 - 75 V
resolution	1 mv
Accuracy	± 0,2 %
Sampling rate	100 ms
Resistance inputs
Range	0 Ohm - 65 Kohm
Accuracy	± 3,0%
TemPartature sensor - NTC 10K
Range	-15 -+80 ° C
Accuracy (-10-60 ° C, 14-140 ° F)	± 3,0%
Connectivity	Up to
Batteries	1
TemPartature sensors	3
Voltage sensors	2
Sicom RJ9 Sockets	2
Installation and dimension
Dimensions (Langth X Width X Depth)	120 x 120 x 60 mm
Battery Connection	M 10 Bolts

Shipping weight:

0,50 kg
