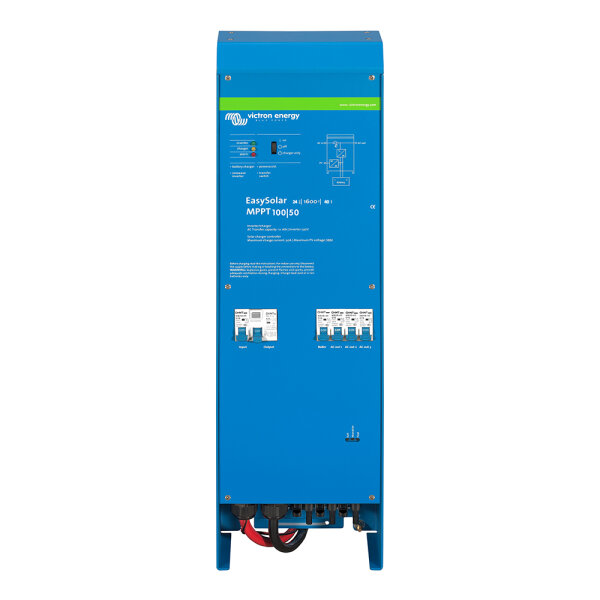

Victron EasySolar 24/1600/40-16 MPPT 100/50

Victron EasySolar 24/1600/40-16 MPPT 100/50

Victron Energy |CEP241621010
GTIN: 8719076021605

JTL\Catalog\Product\Artikel Object ( [kArtikel] => 2158 [kHersteller] => 19 [kLieferstatus] => 1 [kSteuerklasse] => 1 [kEinheit] => 0 [kVersandklasse] => 1 [kStueckliste] => 0 [kMassEinheit] => 0 [kGrundpreisEinheit] => 0 [kWarengruppe] => 0 [nLiefertageWennAusverkauft] => 0 [nAutomatischeLiefertageberechnung] => 0 [nBearbeitungszeit] => 0 [fLagerbestand] => 5 [nNichtLieferbar] => 0 [fMindestbestellmenge] => 0 [fPackeinheit] => 1 [fAbnahmeintervall] => 0 [fGewicht] => 17.05 [fUVP] => 1356.6 [fUVPBrutto] => 1356.6 [fVPEWert] => 0 [fZulauf] => 0 [fMassMenge] => 0 [fGrundpreisMenge] => 0 [fBreite] => 30 [fHoehe] => 20 [fLaenge] => 95 [cName] => Victron EasySolar 24/1600/40-16 MPPT 100/50 [cSeo] => Victron-EasySolar-24-1600-40-16-MPPT-100-50_2 [cBeschreibung] =>

TheVictron Energy Easysolar 24/1600/40-16 mppt 100/50 is a high-end all-in-one solar solution that combines four important components of a good solar system: the MPPT Smart-Solar 100/50, the inverter/battery charger multiplus 24/1600/40 and, to To be able to use the whole thing comfortably, an AC electricity distribution with residual current control switch and two 16A fuses + 10a fuses for 4 separate circuits. The installation of the Victron Easysolar is easy and it is only a little necessary to cable, which reduces the installation costs to a minimum. Victron underlines the quality of the integrated components with the long product guarantee of 5 years.

Components of the Easysolar 24/1600/40-16:
Mppt loader SmartSolar 100/50 50a 12V 24V
The Victron MPPT 100/50 belongs to the large family of the SmartSolar Mppt loader and, like its big siblings, it already offers ultra-fast power tracking and can thus increase the yield of its solar system. Especially when the sky is covered, when the light intensity is constantly changing, an extremely fast MPPT controller improves the energy yield, compared to PWM charging controls, around 30 % and, compared to slower MPPT regulators, up to 10 %. In addition, the 100/50 has some other innovative technologies such as VE.Direct Communication.

Multiplus 24/1600/40 Sinus inverter + battery device
The Multiplus C 24/1600/40 from Victron is a device combination of 24V 1300W sinus inverter and battery charger. The permanently integrated battery charger makes a considerable 40a which can also be fully charged even when the land/network current is available. The 24V built in Multiplus to 230V sinus inverter brings a considerable continuous output of 1300W and copes with peak currents of up to 3000W. With the high quality of the AC electricity, you have to make no compromises when choosing the devices.

Integrated 16A network transfer switch
The 16a transfer switch built into the multiplus ensures maximum flexibility. The Easysolar 24/1600/40-16 can be used for numerous applications in the network and offgrid area, but also for motorhome owners who want to implement their power supply with a high-quality system. It is just as suitable for UPS solutions (uninterruptible power supply) as well as for network -coupled self -consumption systems that can only be used by the network operator if the battery capacity is no longer sufficient or other programmable events have taken place.

Integrated AC distribution
The alternating current distribution consists of a residual current circuit breaker (30 MA/16 A) and four AC outputs, which are secured by two 10 a and two 16 A fuses. A 16 A output is controlled by the AC input: it only switches on when alternating current is available.

Ve.bus communication sport
The Ve.Bus communication sport is extremely powerful and combines the Easy Solar with numerous other components of Victron such as the Global Remote GSM for worldwide remote control or the Monitor Color Control GX system with color display.
In addition, numerous free software programs are available for the Ve.Bus for setting up and controlling VE.Bus devices.

Technical features at an overview
- 1300W continuous output and 3000W peak output, for 24V battery voltage
- Device combination made of inverter with transfer switch and 40A battery charger
- delivers the purest 230V sine voltage and a clean 50Hz frequency
- Ve.Bus communication sport ensures extensive possibilities of networking, system integration, configuration and control
- PowerControl function enables working with limited generator performance as well as limited land or network electricity
- Power assist function enables “increase in performance” by generators and land connection support if necessary
- can be used as a UPS solution for interruption -free power supply
- For network -coupled self -consumption systems that can only be used, which only pull electricity from the network operator if the battery capacity is no longer sufficient or other programmable events have taken place
- Compatible with numerous Victron tax and display panels
- Programmable relay on the inverter
-Integrated battery temperature sensor on the inverter for temperature equalization of the battery loader
-PV connection via three phase operation with identical multiplus interim judges possible
- Ultra-fast MPP tracker of the latest generation ensures the best possible yield even with a covered sky
- Automatic detection of the MPP Tension In the case of partial shading, a further earnings improvement compared to "simpler" MPPT loader
- High overall efficiency of 92%
- Fully programmable loading algorithms that can later be activated and switched manually via a switch on the housing
- nominal charging current 50a, 100V maximum PV empty voltage
- 1400W maximum PV power at 24V
- Integrated protection against battery reolving
- Multi-stage and adaptive loading algorithm
- Integrated temperature sensor compensates for conservation and constant charging voltage after temperature
- Complete AC distribution with 2x16a fuses, 2x10a backup and an residual current circuit breaker make the Easysolar very safe
- 5 years of product guarantee
- Suitable for all common battery types and lithium batteries
-Day/night-time control and light dimmer Features

[cAnmerkung] => [cArtNr] => CEP241621010 [cURL] => Victron-EasySolar-24-1600-40-16-MPPT-100-50_2 [cURLFull] => https://frenchman-marine.eu/Victron-EasySolar-24-1600-40-16-MPPT-100-50_2 [cVPE] => N [cVPEEinheit] => [cSuchbegriffe] => [cTeilbar] => N [cBarcode] => 8719076021605 [cLagerBeachten] => Y [cLagerKleinerNull] => N [cLagerVariation] => N [cKurzBeschreibung] =>

The Victron Energy EasySolar 24/1600/40-16 MPPT 100/50 is a high-end all-in-one solar solution that combines four key components of a good solar system in one unit: the MPPT Smart-Solar 100/50, the inverter/battery charger combination Multiplus 24/1600/40 and, for convenient operation, an AC power distribution unit with residual current circuit breaker and two 16A fuses + 10A fuses for 4 separate circuits. Installation of the Victron EasySolar is simple and requires only minimal wiring, reducing installation costs to a minimum. Victron highlights the quality of the integrated components with a long 5-year product warranty.

709,00 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

(Save 47.74%, i.e. 647,6 €)

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Available immediately
Shipping in 8-10 business days (DE - int. shipments may differ)

Due to exceptionally high demand, we are currently experiencing shipping delays. We apologize for any inconvenience.

Ordered in Germany. Delivered to Switzerland.

Order from any online shop in Germany and receive your goods at your doorstep in Switzerland in just 2–3 days.

Shipping weight:

17,05 kg
Item weight:

15,37 kg

Manufacturer
Name: Victron Energy B.V.
Street: De Paal 35
ZIP-Code, City: 1351 JG Almere
Email: sales@victronenergy.com
Web: https://www.victronenergy.com

Responsible Person
Name: Bukh-Bremen GmbH
Street: Ferdinand Porsche Str. 11
ZIP-Code, City: 28327 Niedersachsen Bremen
Email: info@bukh-bremen.de
Web: https://www.bukh-bremen.de

Technical information -

Datasheet -

Product Manual -

Press release -

Press release -

Technical information -

Certificate -
