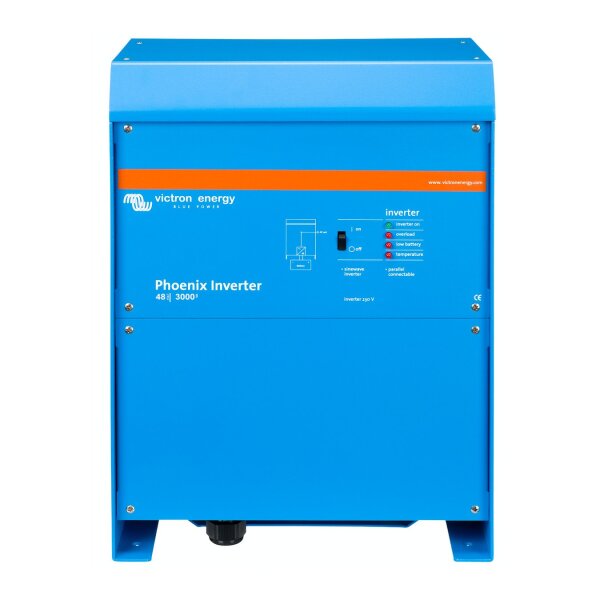

Victron Phoenix Inverter 48/3000

Victron Energy |PIN483020000
GTIN: 8719076023852

JTL\Catalog\Product\Artikel Object ( [kArtikel] => 501 [kHersteller] => 19 [kLieferstatus] => 1 [kSteuerklasse] => 1 [kEinheit] => 0 [kVersandklasse] => 1 [kStueckliste] => 0 [kMassEinheit] => 0 [kGrundpreisEinheit] => 0 [kWarengruppe] => 0 [nLiefertageWennAusverkauft] => 3 [nAutomatischeLiefertageberechnung] => 1 [nBearbeitungszeit] => 0 [fLagerbestand] => 1 [nNichtLieferbar] => 0 [fMindestbestellmenge] => 0 [fPackeinheit] => 1 [fAbnahmeintervall] => 0 [fGewicht] => 19.6 [fUVP] => 855.61 [fUVPBrutto] => 855.61 [fVPEWert] => 0 [fZulauf] => 0 [fMassMenge] => 0 [fGrundpreisMenge] => 0 [fBreite] => 45.5 [fHoehe] => 34 [fLaenge] => 31.5 [cName] => Victron Phoenix Inverter 48/3000 [cSeo] => Victron-Phoenix-Inverter-48-3000 [cBeschreibung] =>

TheVictron inverter Phoenix 48/3000 is the second largest 48V variant of a Phoenix inverter. Especially in the communication area, he has some innovative technologies that make the C48/3000 a future -proof investment. The continuous output of this device is 2400W. From a 48V battery, this device generates 230V AC with a pure sine wave and clean 50Hz frequency. which also makes the operation of very sensitive electronics devices possible without compromise. The voltage converter also scores with excellent values in terms of self -consumption and efficiency. As a icing on the cake, this device class now also dominates parallel operation and the three -phase operations with other Phoenix interverters of the same series.

Ve.Bus RS-485 Communication sport-far-reaching, new possibilities
All Phoenix inverter of the Series 12V/24V/48V-3000-5000 have an RS-485 data port and can thus use the optional VE Interface MK2-USB connection to a computer/notebook, which can be used in terms of configuration and Surveillance opened whole new possibilities:

Programming -based programming many parameters such as the output voltage, frequency, the upper and lower voltage limits and much more
can be integrated into a computer-aided monitoring and control system
All Phoenix Compact converter can also be used on Venet, the innovative performance monitoring network from Victron Energy, or other computer-aided control and monitoring systems
Easy programming of the integrated relay. The relay can be used, for example, to create signals in special situations or to start a generator.
Parallel and three-phase operation with other Phoenix inverters possible

The development of the new Phoenix series aimed uncompromisingly on an inverter with a clean sinus output with high efficiency. By applicationLatest hybrid HF technology Was it possible to develop a quality product with compact dimensions with low weight, which can easily output any desired performance. Sinusmax technology, which also enables its place in this series, particularly high peak currents when switching on devices of 6000W!

Other technical 48/3000 Phoenix
2400W continuous output, suitable for all common 48V batteries
Real sine wave delivers a precise 50Hz frequency
Much higher top performance possible thanks to integrated sinus-max technology from Victron
Convert 48V DC into 230V AC with pure sinus wave
Advanced hybrid HF technology is installed, which is much more powerful and less prone to disorders than conventional high-frequency technology
very low self -consumption and high efficiency
Integrated energy saving mode
with 2 poly alarm contact which can be used as an output for one, outdoor control
Very high starting performance thanks to SinusMax technology

Sinus-Max technology
An essential feature of the Sinusmax technology is the particularly high starting performance. This is not possible with conventional HF technology. Phoenix inverters are able to cope with the high starting streams, for example, of cooling compressors, tool engines and the like. Practically unlimited performance due to parallel circuit and three-phase operation up to six inverter units can be switched in parallel to increase performance. A three-phase operation is also possible.

Load switching on other intercourse sources: the automatic load switch
For smaller services, we recommend the Filax automatic switch. Computers and other sensitive electronic devices can be operated practically without interruption, since the switching times are very short (below 20 m/sec).

[cAnmerkung] => [cArtNr] => PIN483020000 [cURL] => Victron-Phoenix-Inverter-48-3000 [cURLFull] => https://frenchman-marine.eu/Victron-Phoenix-Inverter-48-3000 [cVPE] => N [cVPEEinheit] => [cSuchbegriffe] => [cTeilbar] => N [cBarcode] => 8719076023852 [cLagerBeachten] => Y [cLagerKleinerNull] => N [cLagerVariation] => N [cKurzBeschreibung] =>

The Victron Inverter Phoenix 48/3000 is the second-largest 48V version of a Phoenix inverter. It features several innovative technologies, especially in the communications area, making the C48/3000 a future-proof investment. The continuous output of this unit is 2400W. From a 48V battery, this unit generates 230V AC power with a pure sine wave and clean 50Hz frequency, which also allows the operation of very sensitive electronic devices without compromise. The inverter also scores excellent values in terms of low self-consumption and efficiency. As the icing on the cake, this device class now also supports parallel operation and three-phase operation with other Phoenix inverters of the same series.
VE.Bus RS-485 communication port – extensive new possibilities
All Phoenix inverters in the 12V/24V/48V-3000-5000 series feature an RS-485 data port and can therefore connect to a computer / notebook using the optional VE Interface MK2-USB, opening up completely new possibilities for configuration and monitoring:

589,00 €

incl. 0% VAT , Shipping costs for orders according to (DE) §12 para. 3 UStG

(Save 31.16%, i.e. 266,61 €)

Choose tax zone / country of delivery

0% VAT for photovoltaics (Section 12 (3) UStG). For further information, please see und here

Low stock level
Shipping in 1-3 business days (DE - int. shipments may differ)

Due to exceptionally high demand, we are currently experiencing shipping delays. We apologize for any inconvenience.

Ordered in Germany. Delivered to Switzerland.

Order from any online shop in Germany and receive your goods at your doorstep in Switzerland in just 2–3 days.

Shipping weight:

19,60 kg
Item weight:

18,30 kg
